Body Style
Finish | Brushed Nickel : Brass
Standard finishes of brushed nickel and brass. Custom finishes are available upon request
Body | Standard
Available in standard body style with integrated pull handle
Interface

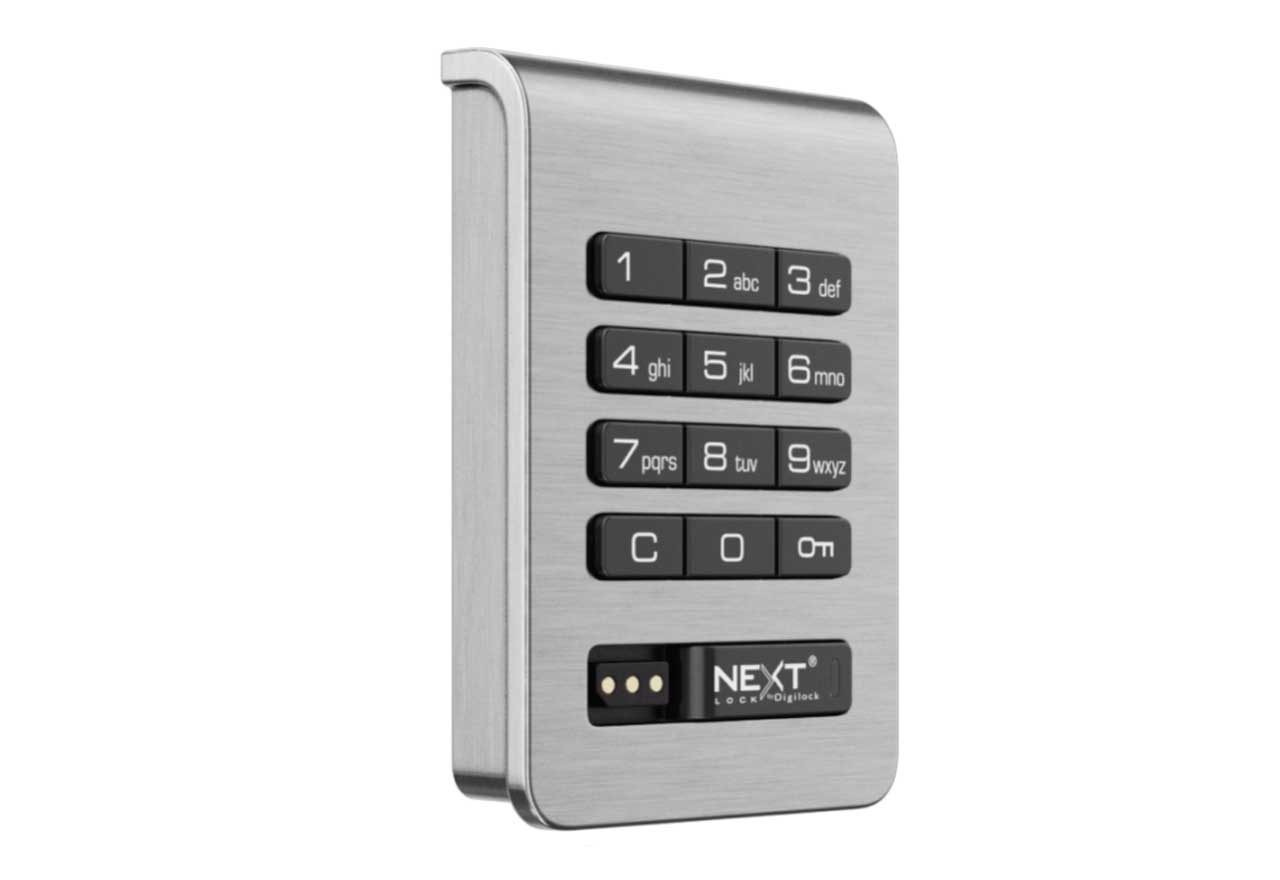

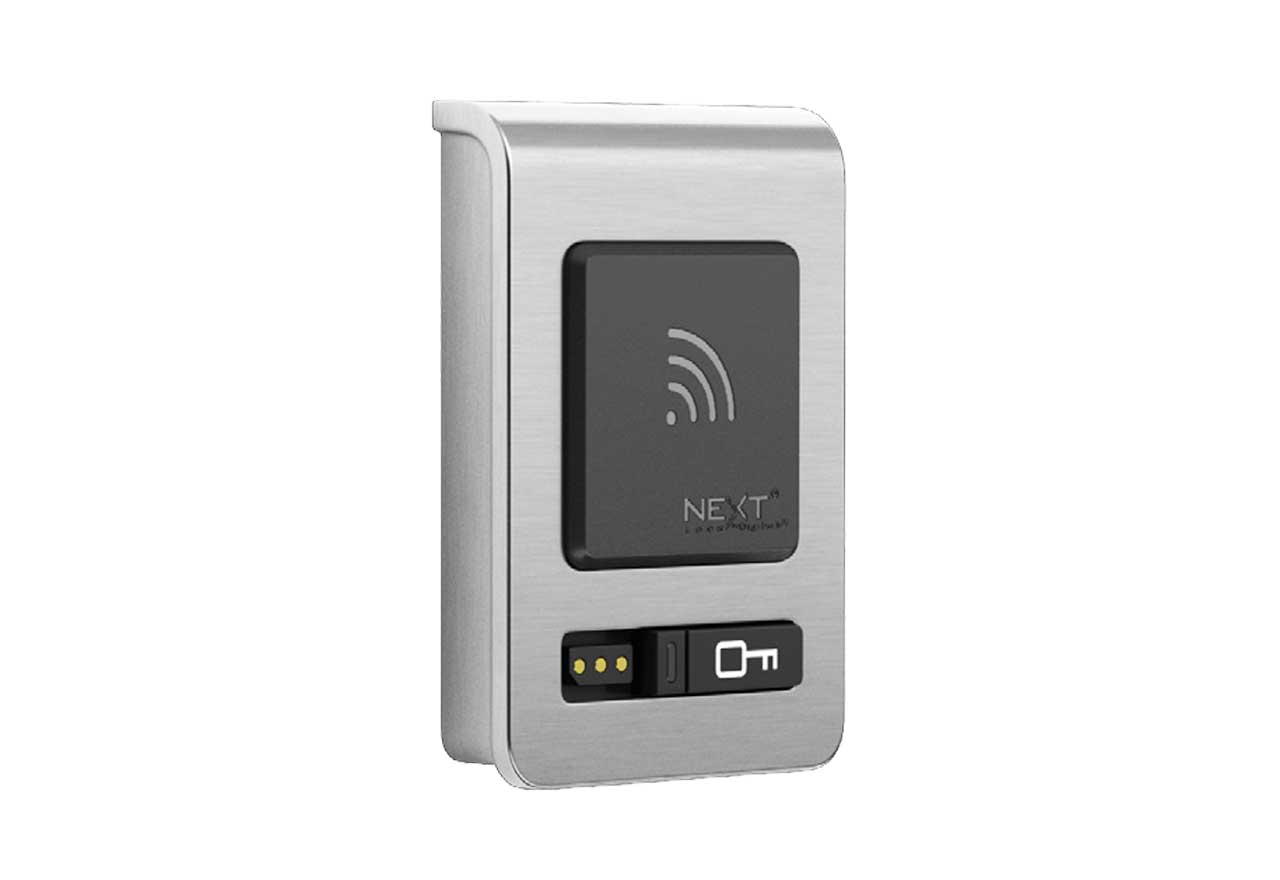

Standard Keypad : RFID
Cue locks operate with an alphanumeric keypad interface. Key managed locks also contain a key slot to operate locks with an ADA compliant User Key.
Power | 4 AA batteries
Providing battery life of 124,500 cycles for Keypad & 75,000 cycles for RFID.*
*Based on average usage.
Deadbolt
Rear Unit
Features a 1/2” (12.7mm) motorized deadbolt designed for either shared or assigned use functionality.
Shared Use
In shared use functionality, the locks are designed for day-use lockers. The user chooses an available locker and operates it with a self-selected user credential. Once the locker is vacated, it becomes available for a different user.
Deadlatch
Rear Unit
Features a 1/2” (12.7mm) motorized deadlatch designed for assigned use functionality.
Assigned Use
In assigned use functionality, the locks are designed for lockers that are for private use. The user is assigned a locker and operates it with their assigned user credential.
Key Management
Patented electronic keys offer external power, audit, and override capabilities for a credible management system that significantly enhances productivity and reduces cost.
Lock Management
Select Nextlock solutions can be programmed and managed through a mobile device, providing simplified programming, management, and audit trail.
